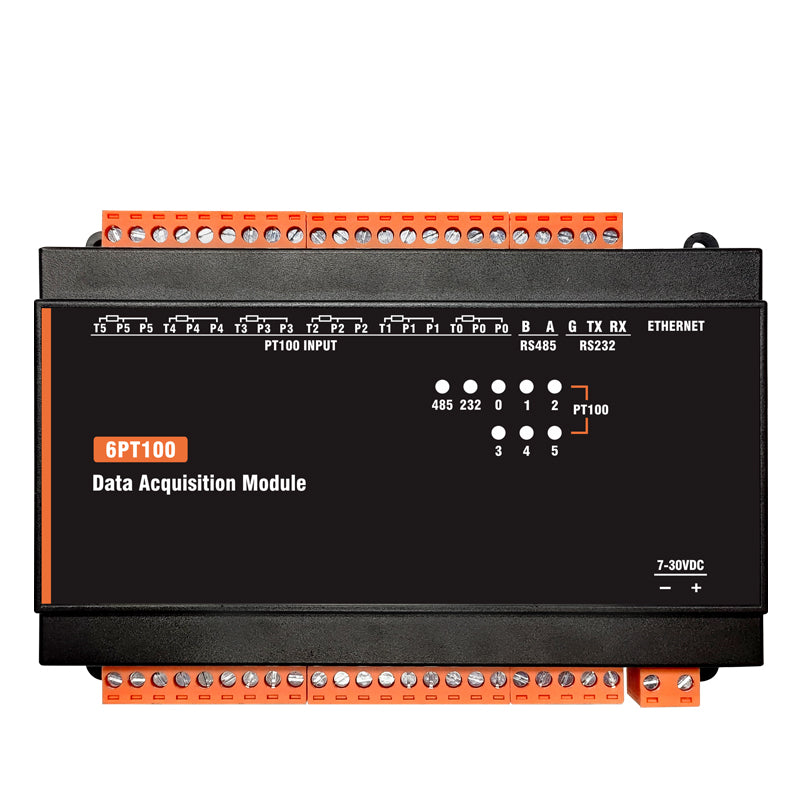

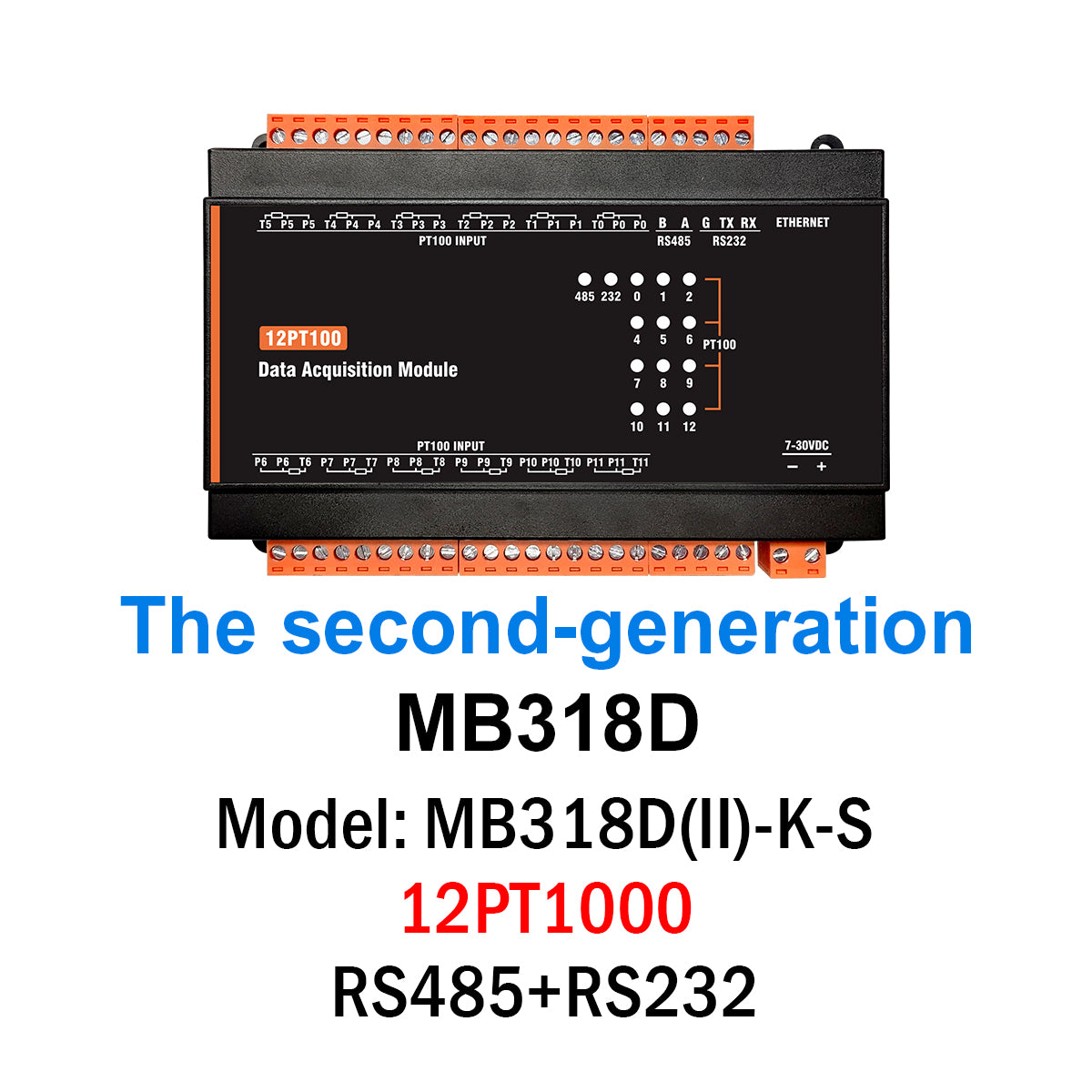

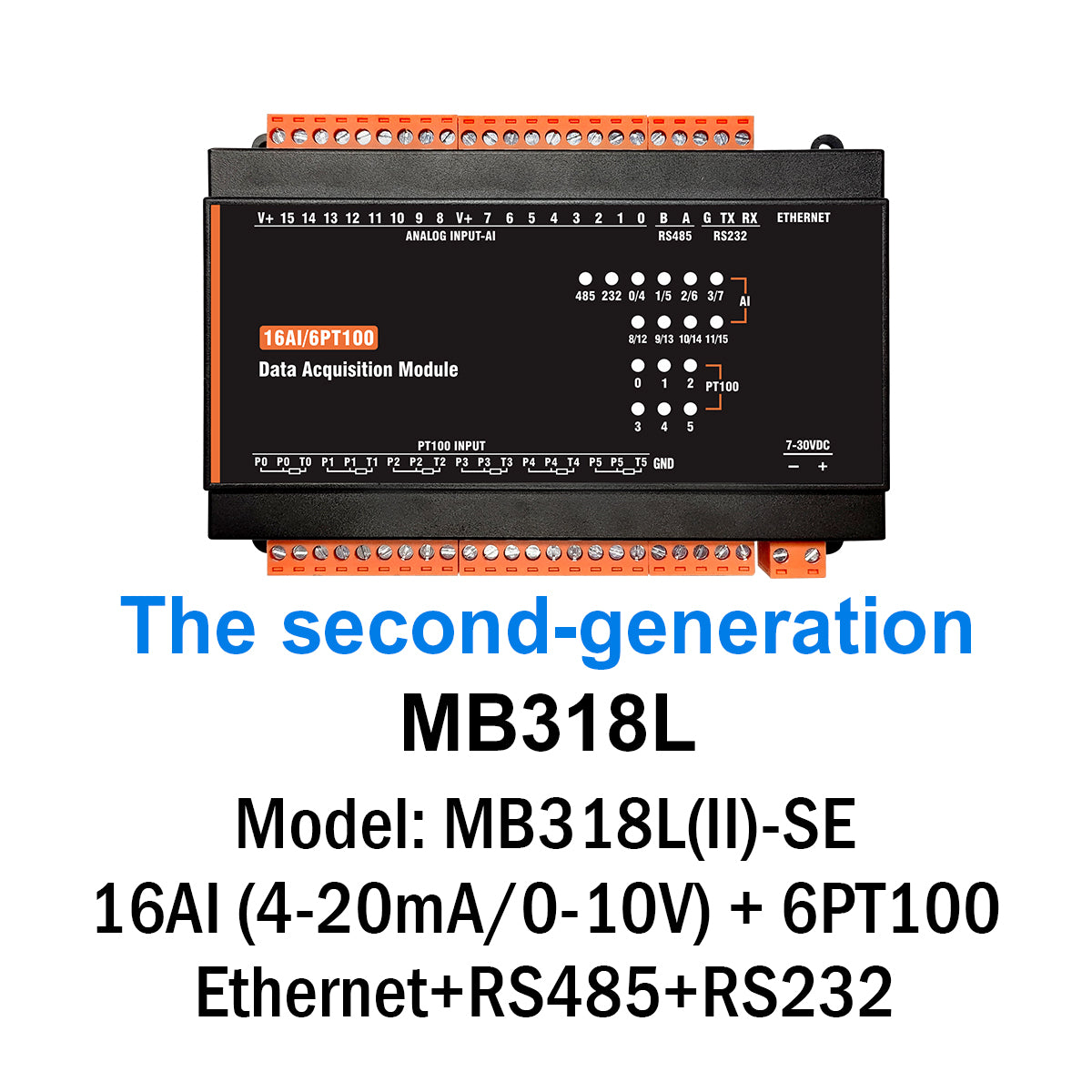

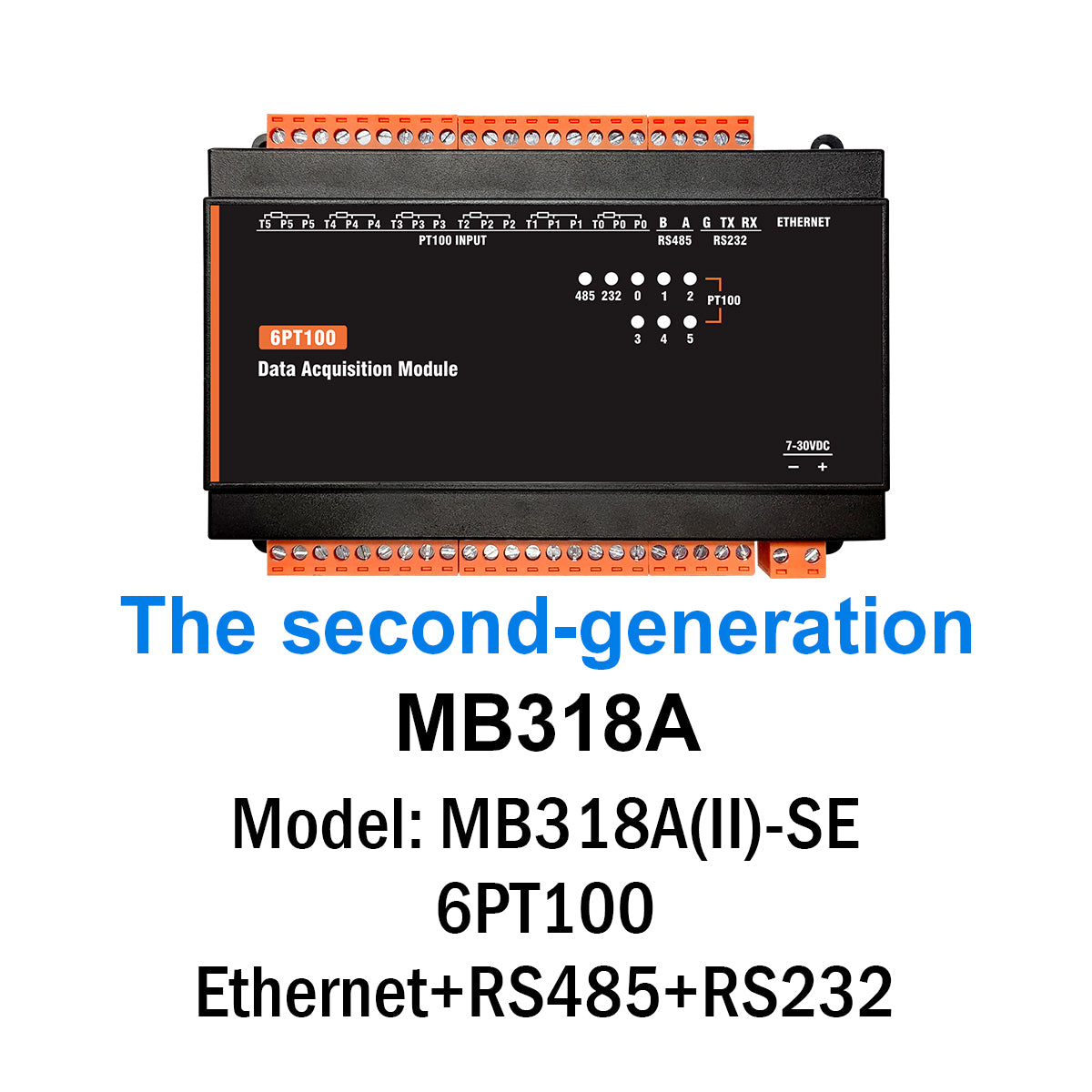

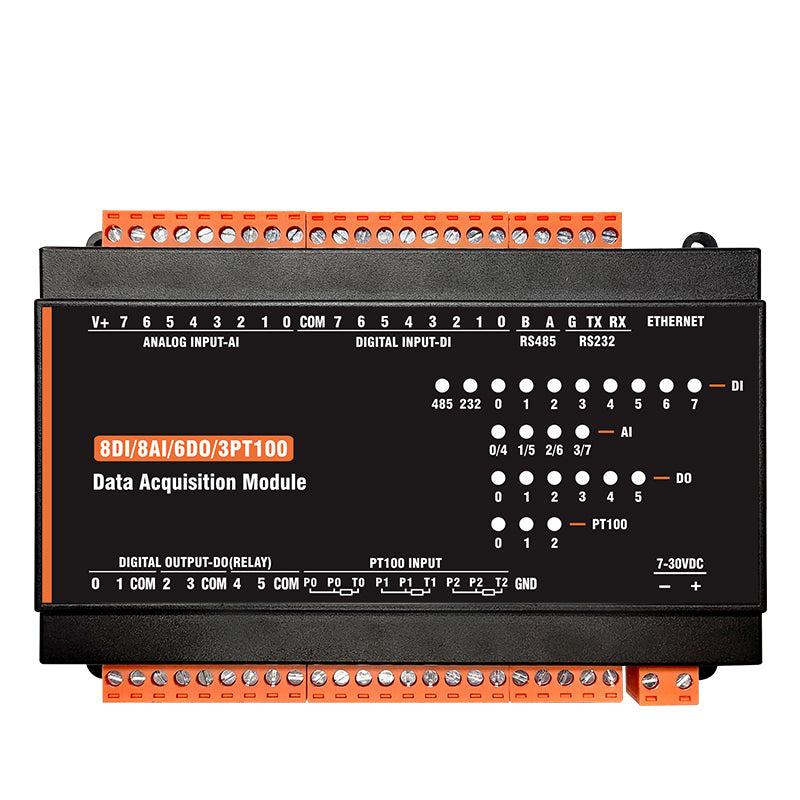

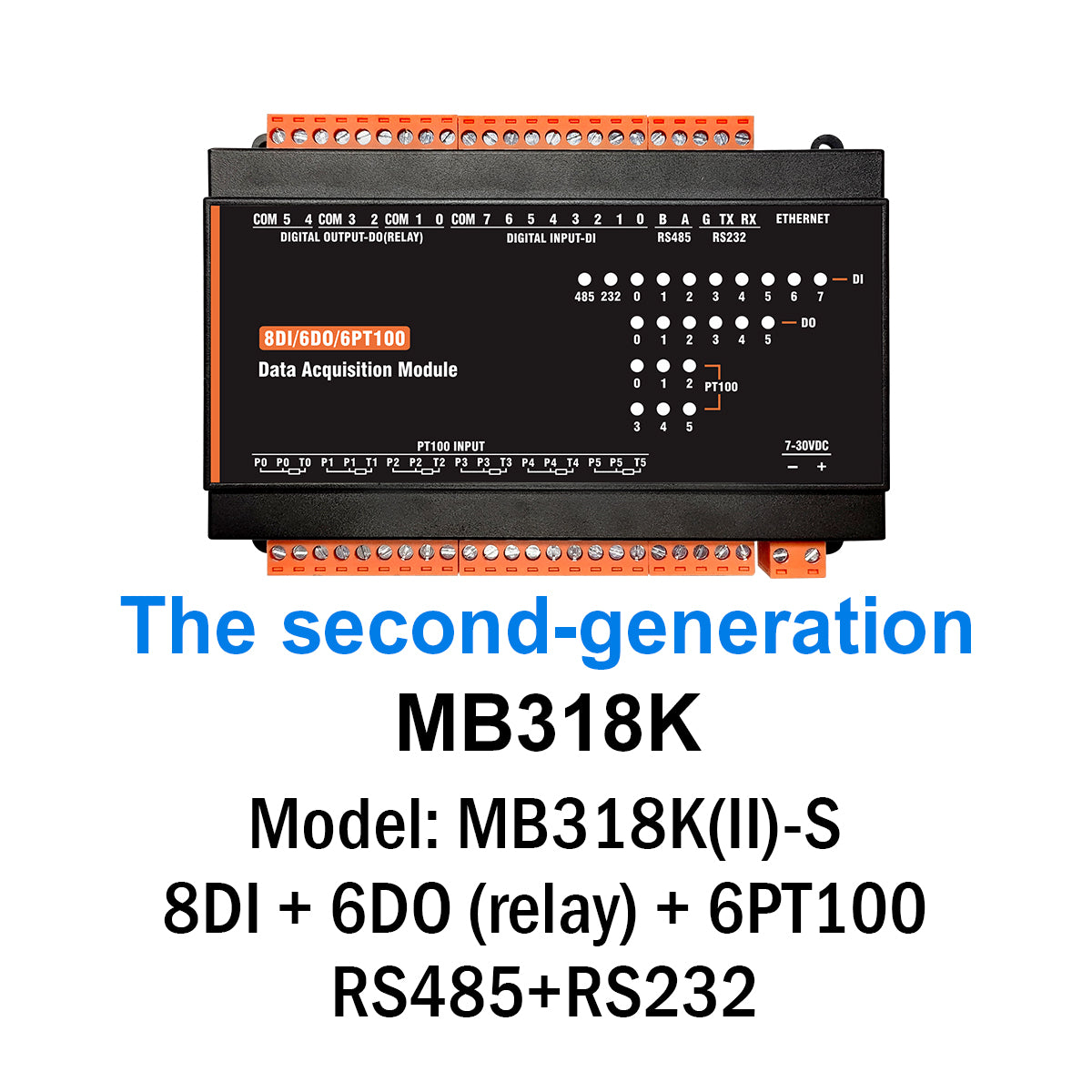

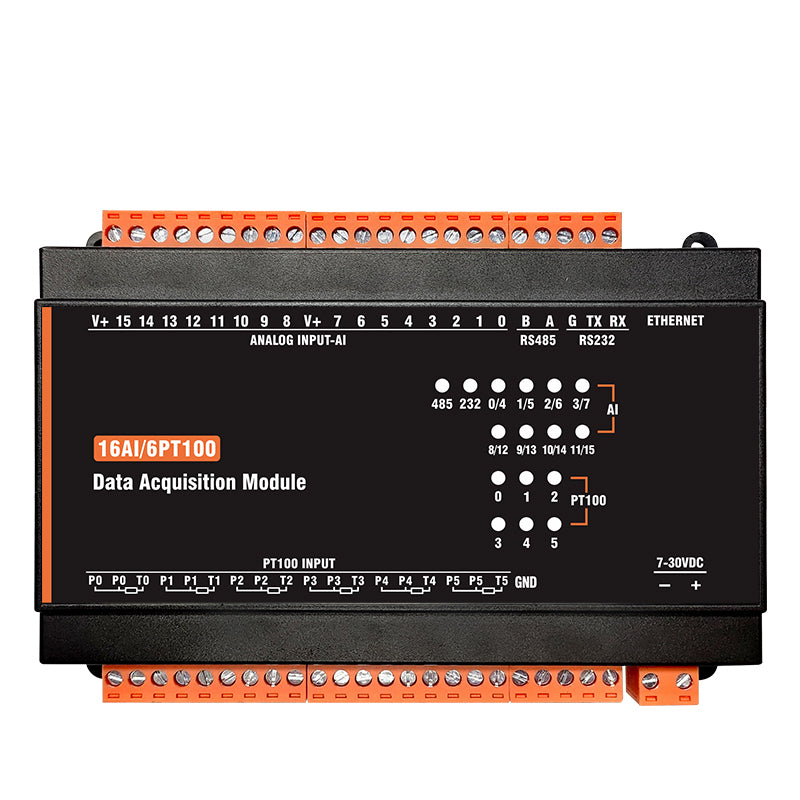

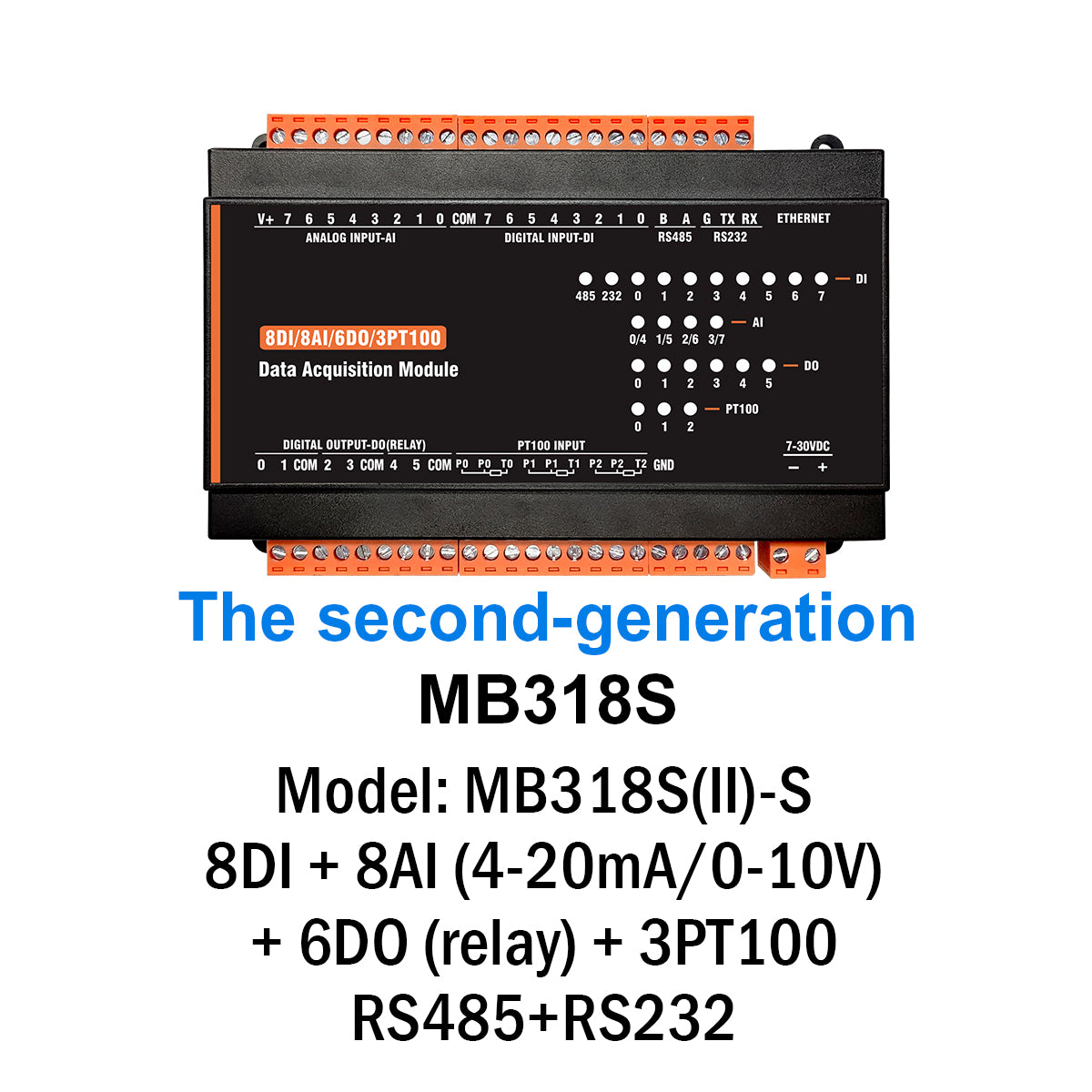

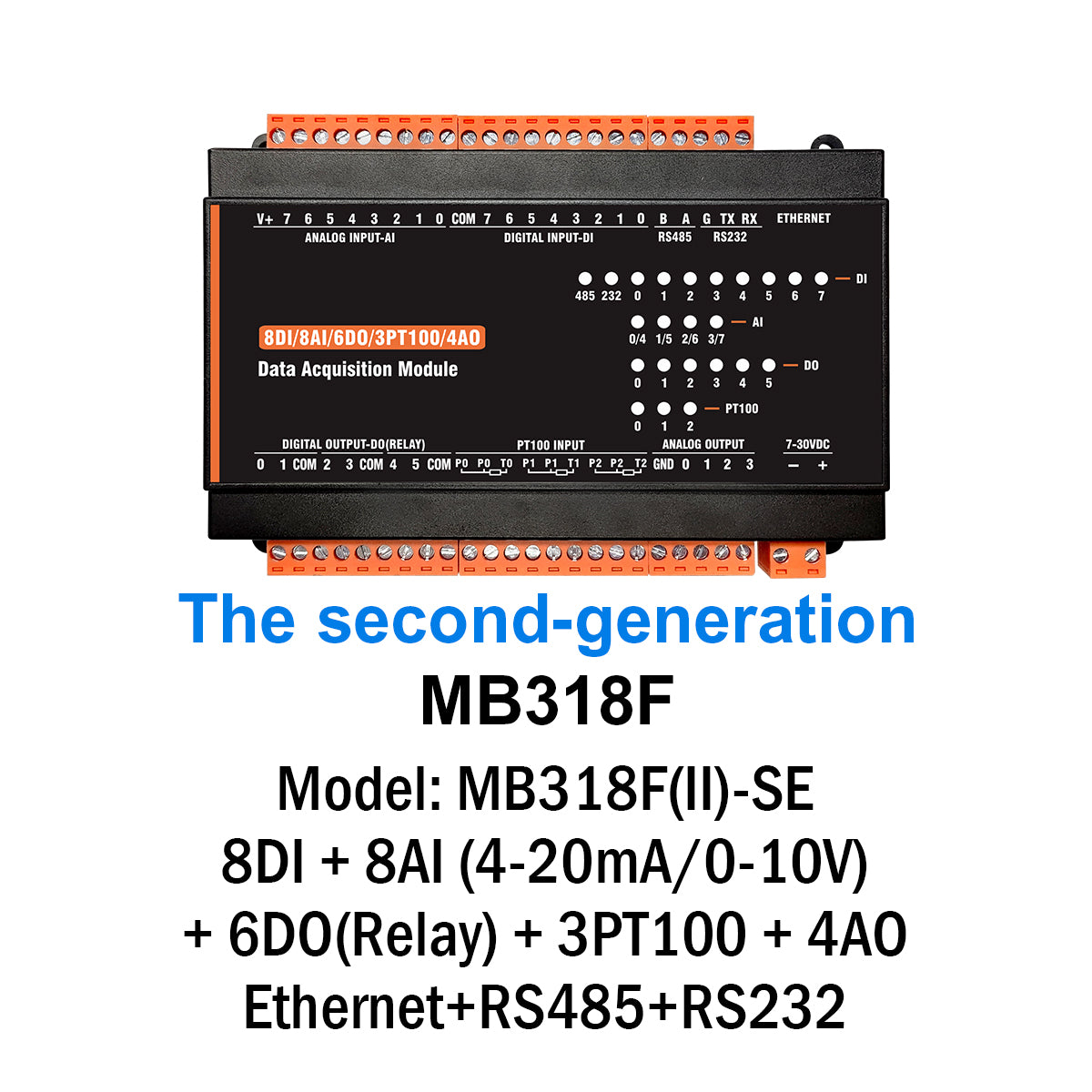

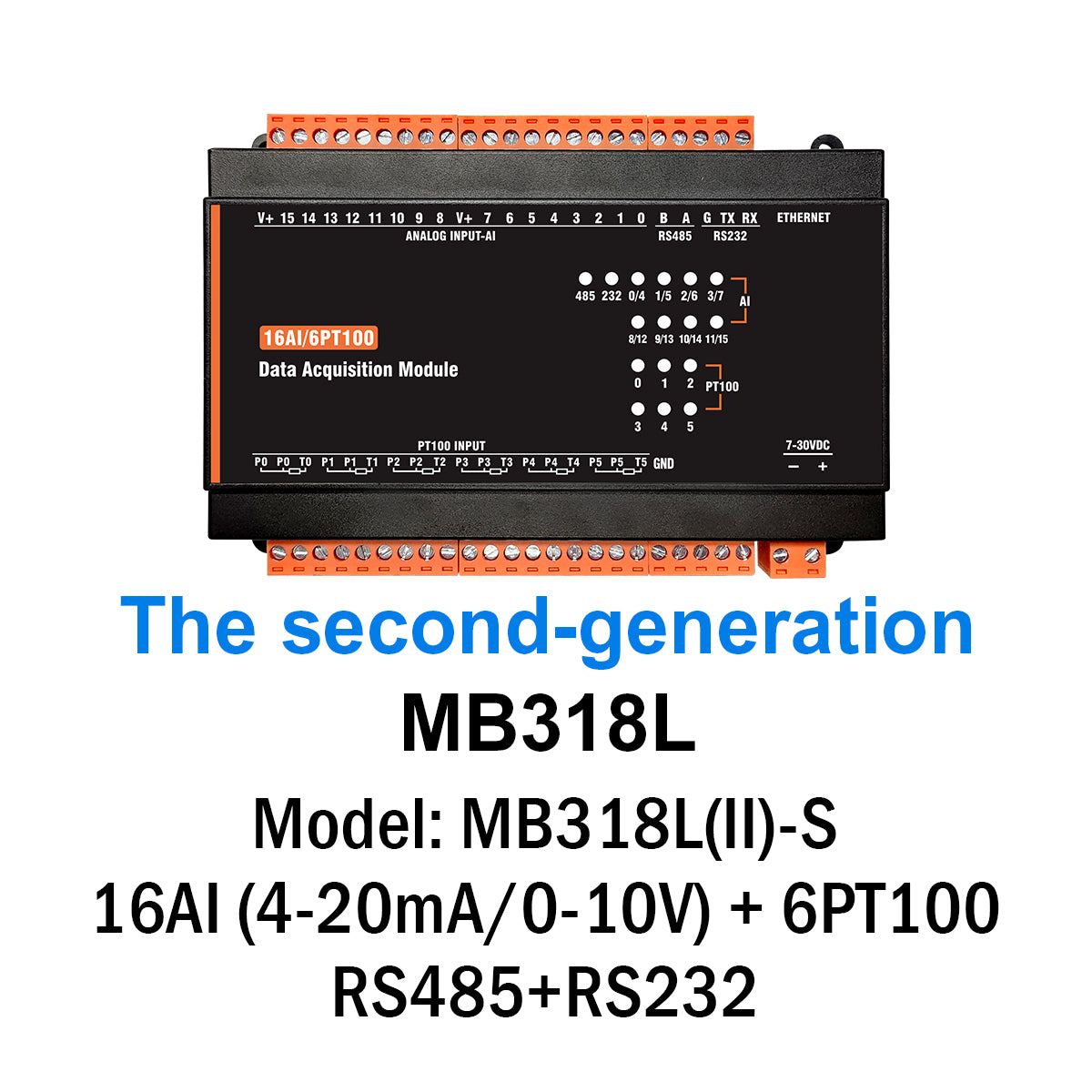

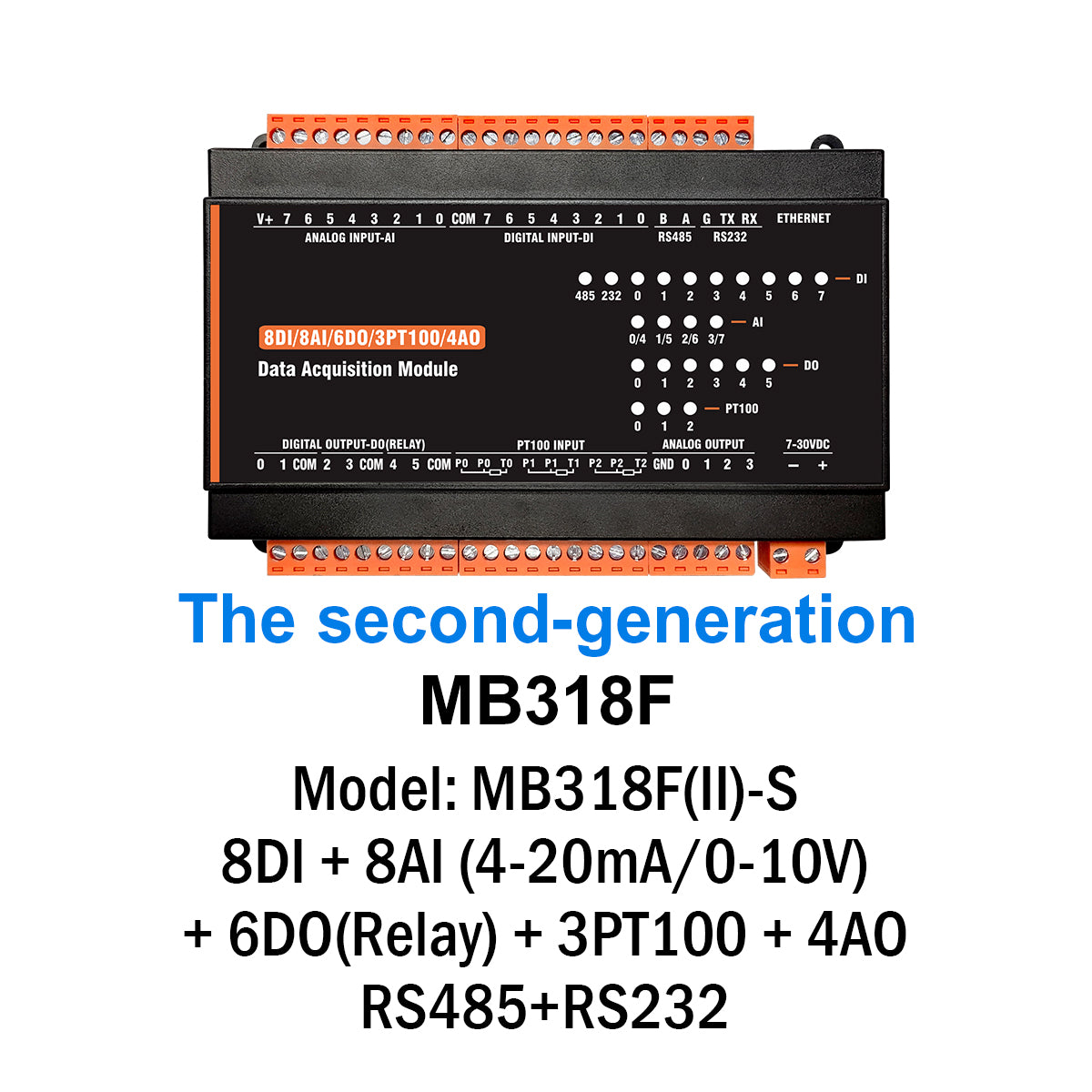

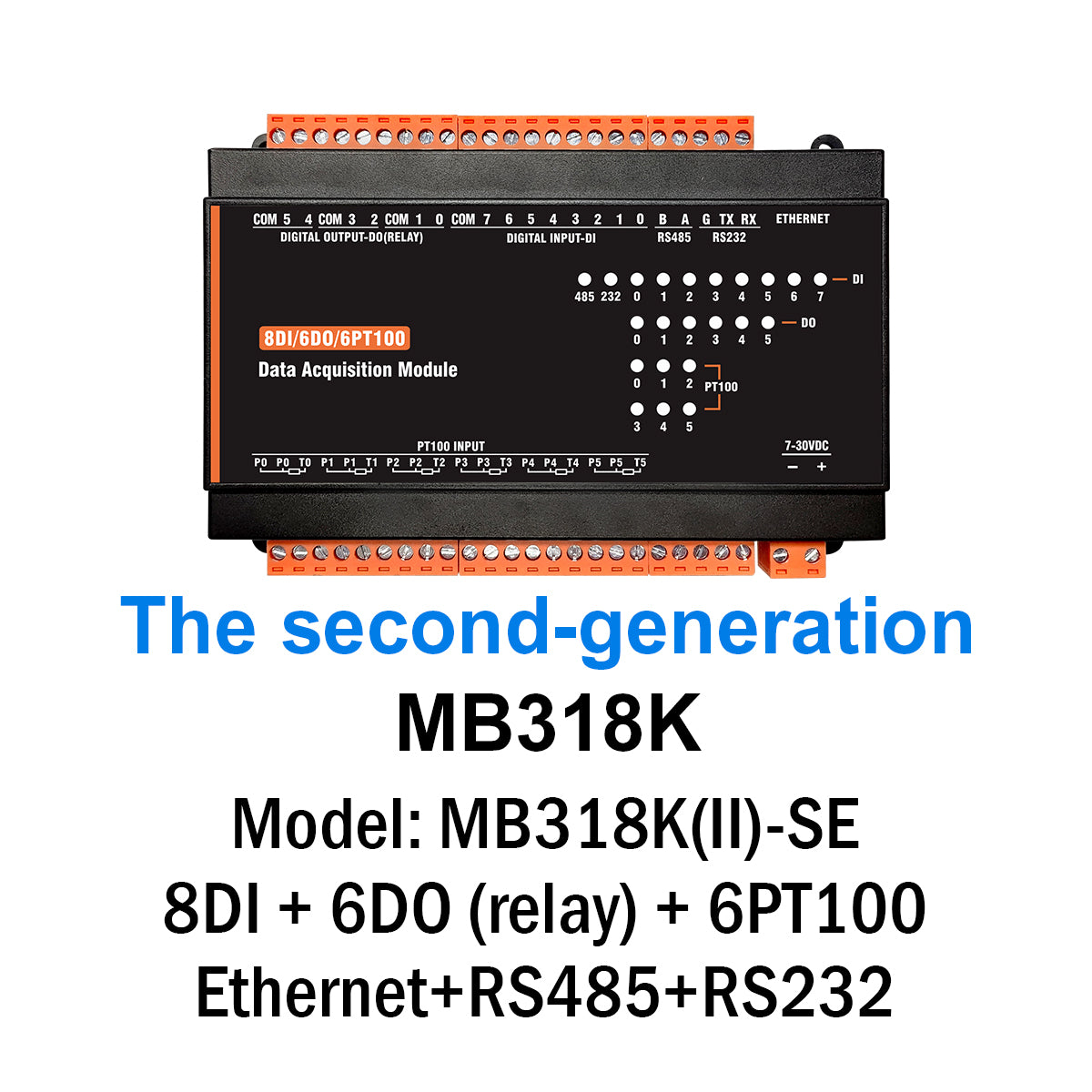

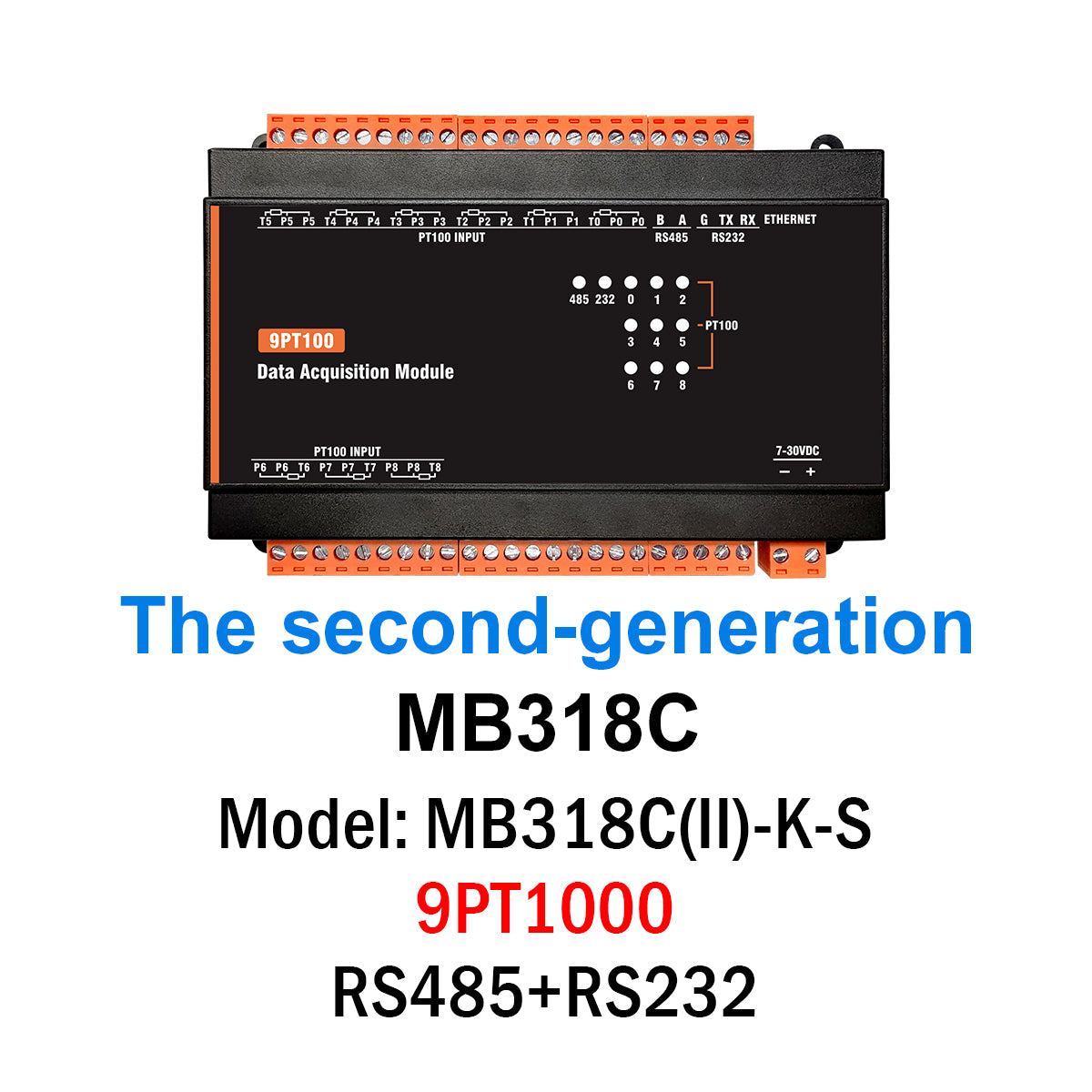

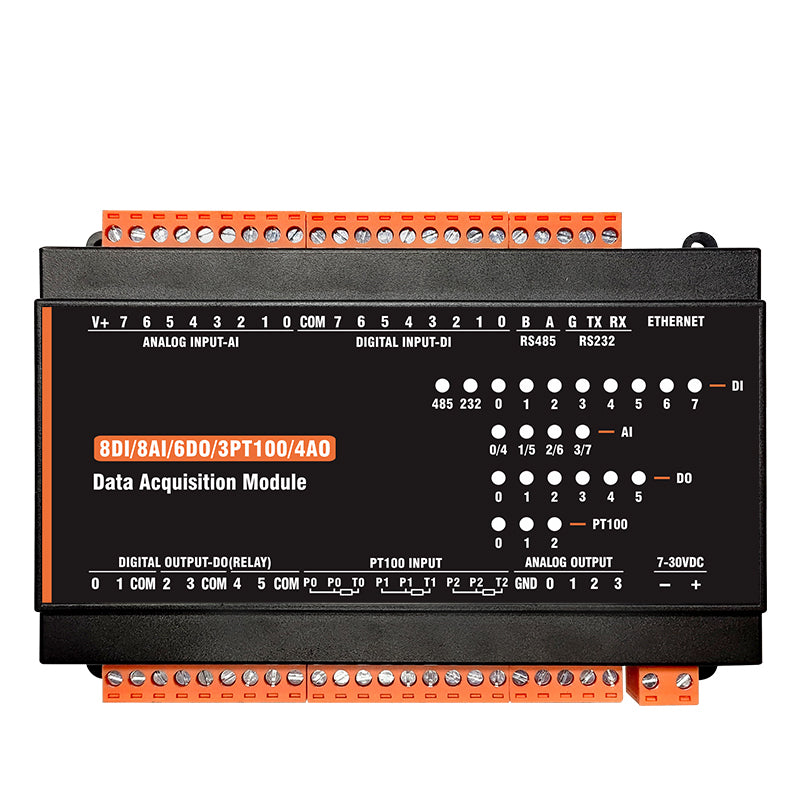

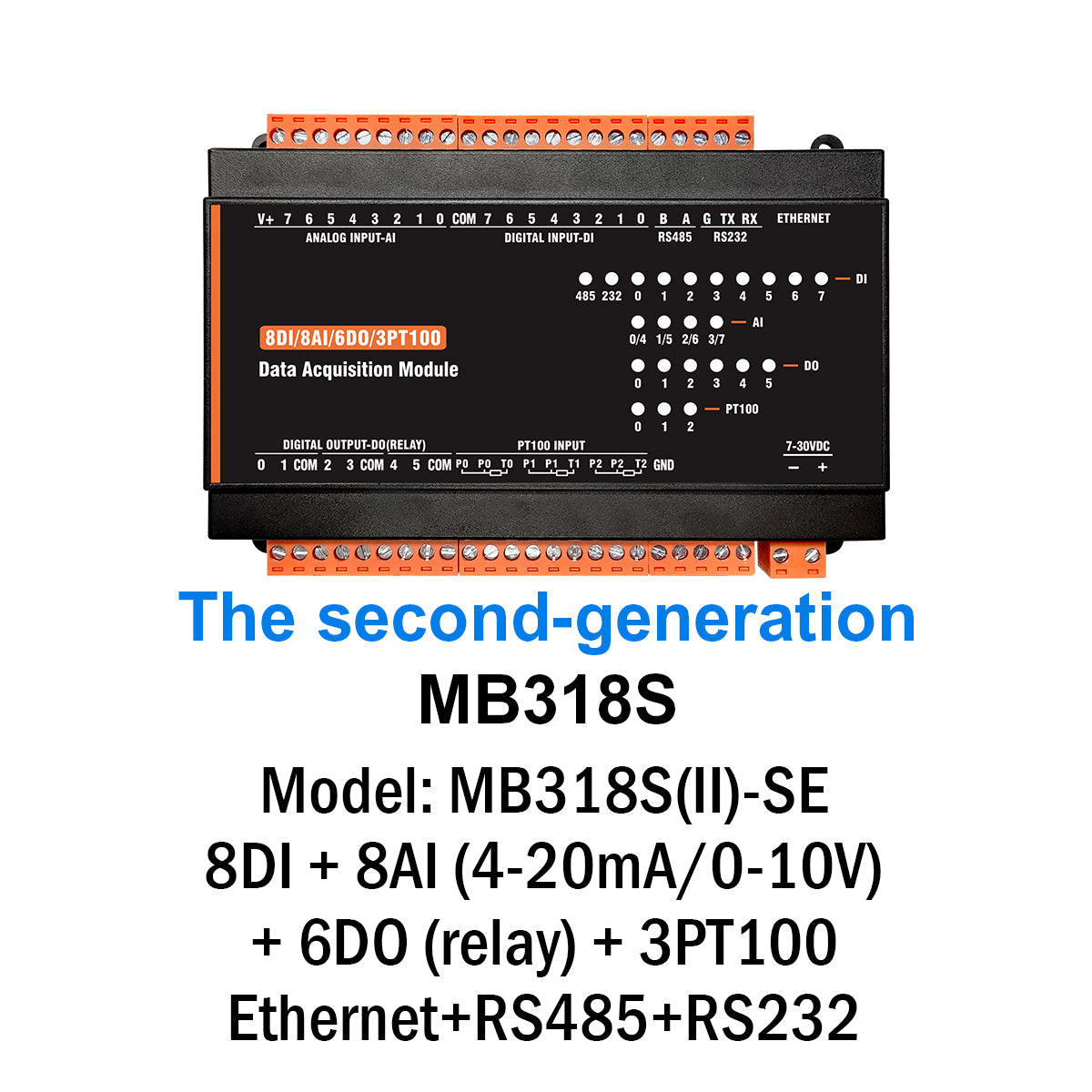

MB(II)-+PT Digital lnput with Optocoupler lsolation

Modbus lO module series with multi-channel DI/DO/AI/PT100 input. widely used in buildings, HVAC, fire, water, petrochemical, environmental protection and other industries, for most systems integrators and automation companies, it is a highly cost-effective, reliable data acquisition module. Thismodule is designed for the whole industry, power supply, signal inputs and outputs, optional RS485, RS232 and Ethernet port, interference protection designed to ensure data accuracy and reliability.

Configuration port

size

**1589438mm**

Options:

System parameters

CPU	32-bit ATMEL ARM, 72MHZ
OS	GCOS,10ms scheduling mechanism
Power	7-35VDC @2W, power supply reverse protection, isolation design
Installation	DIN rail mounting or screw fixing
Working Environment	-40℃~85℃,5%~95%RH(non-condensing)
Protection	IP20
Watchdog	1.5m guard

Series port parameters

Port type	1RS485 & 1RS232
Protection	DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection
Baud rate	1200~115200,default 9600
Parity	Even, Odd, None
start bit	1 bit
data bits	8 bit
Stopbits	1,2bits
Protocol	MODBUS RTU
default	9600.N.8.1,slave id is 1
