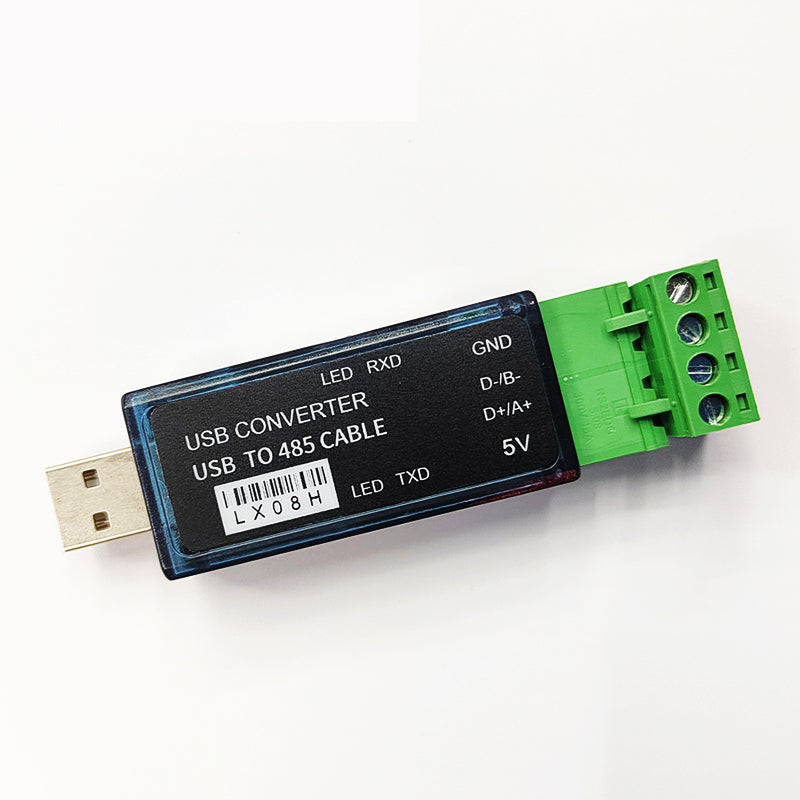

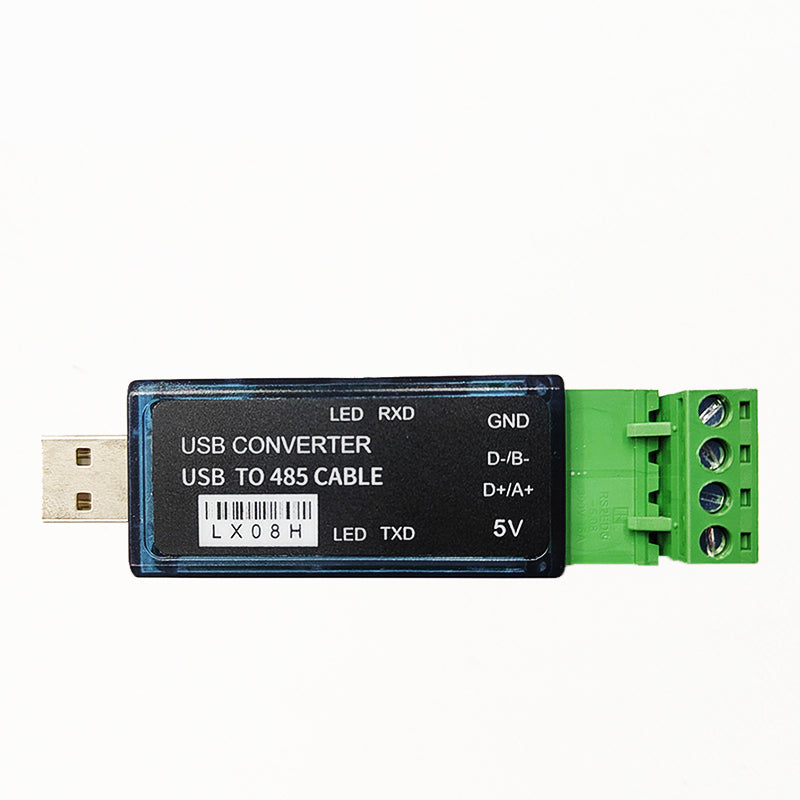

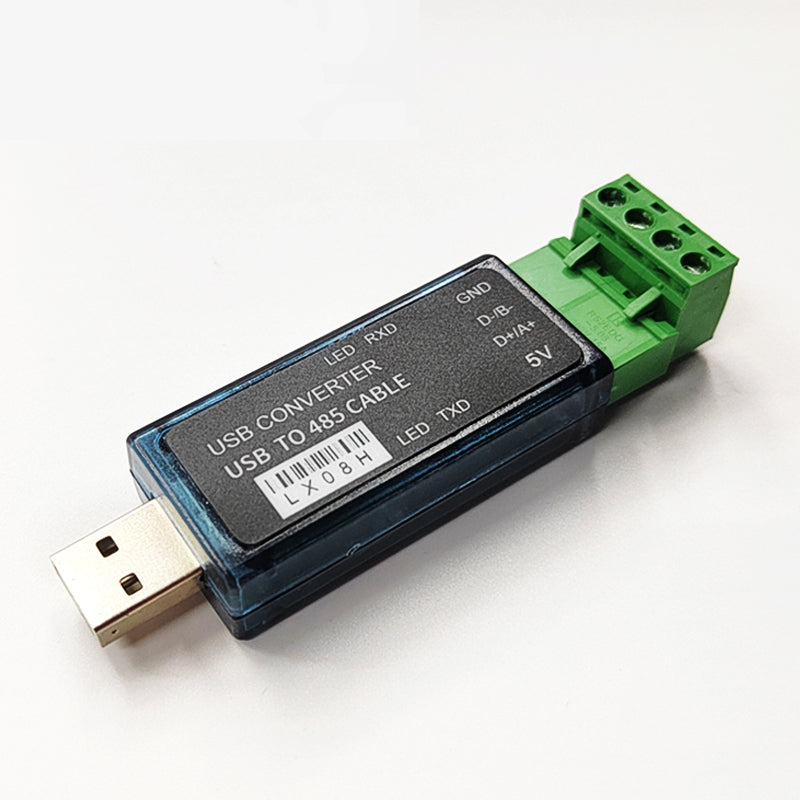

Industrial USB to RS485 Converter

Parameters:

• Power supply: USB 5V

• Transmission distance: up to 1200 meters (under 9600bps conditions)

• Chip solution: CH340

• Communication protocol: pure hardware equipment, not restricted by protocol

• Baud rate: up to 921600bps, supporting mutual transmission to support higher baud rate

• Protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short-circuit and short-circuit protection with the power supply (short-circuit does not burn)

• Provide external 5V power supply, with fuse current limit

• USB interface can be hot-plugged

• support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X system,

• Automatically identify and control the data transmission direction, without any handshake signals (such as RTS, DTR, etc.) without jumper settings to achieve mode conversion, to ensure compliance with the existing communication software and interface hardware.
